The Baker’s Dozen of Use Cases

February 22nd, 2011

Use cases have become a core part of the requirements analyst’s arsenal.  Used well they can bring dramatic increases in customer satisfaction and a whole host of other subtle benefits to software development.

The use case itself is very simple in concept: describe the functionality of the system in terms of interactions between the system and its external interactors.  The focus of the use case is system usage,  from an external perspective.

Despite this apparent simplicity, requirements analysts frequently struggle to write coherent, consistent use cases that can be used to facilitate development.   Often, the use case analysis becomes an exercise in confusion, incomprehension and the dreaded ‘analysis paralysis’.

This article aims to aid use case writers by presenting a set of rules to follow when performing use case analysis.  The rules are designed to avoid common pitfalls in the analysis process and lead to a much more coherent set of requirements.

A brief introduction to use cases

The Baker’s Dozen ‘rules’:

Rule 1: Use cases aren’t silver bullets

Rule 2: Understand your stakeholders

Rule 3: Never mix your actors

Rule 4: The "Famous Five" of requirements modelling

Rule 5: Focus on goals, not behaviour

Rule 6: If it’s not on the Context or Domain models, you can’t talk about it

Rule 7: Describe ALL the transactions

Rule 8: Don’t describe the user interface

Rule 9: Build yourself a data dictionary

Rule 10: The magical number seven (plus or minus two)

Rule 11: Don’t abuse <<include>>

Rule 12: Avoid variations on a theme

Rule 13: Say it with more than words



These 13 guidelines are by no means exhaustive (for example, what about ‘Abstract’ actors; or System Integrity use cases?) and I’m sure there are dozens more I could add to the list (by all means, let me know your golden rules)  The aim of writing this article was to give beginners to use case modelling a simple framework for creating useful, effective use cases – something I think is sorely missing.

The Baker’s Dozen can be (neatly) summed up by the following principles:

  • Understand the difference between analysis and design.
  • Understand the value of a model – know why to create the model, not just how.
  • Understand the difference between precision and detail.
  • Keep it simple; but never simplistic

Next>>

The Baker’s Dozen of Use Cases

February 21st, 2011

Rule 13: Say it with more than words

Use case descriptions are most commonly written in text format (albeit often a stylised, semi-formal style of writing). Text is a very effective method of describing the transactional behaviour of use cases – it’s readily understandable without special training; most engineers can produce it (although the ability to write basic prose does seem beyond the capability of many!); and it is flexible enough to deal with complex behaviours – for example, variable numbers of iterations through a loop – without becoming cumbersome.




Use the most appropriate notation for the behaviour you are describing



However, this flexibility can come at the price of precision. Sometimes, for example in many control systems, you have to state precisely what the response of the system will be. Words, in this case, are not adequate (that said, I have seen requirements engineers attempt to describe the overshoot behaviour of a closed loop control system in English prose!)

This rule therefore should be: find the most appropriate notation to describe the transactions between the actors and the system; with a corollary that sometimes the right notation is multiple notations. Use tables, charts, diagrams, activity diagrams, flowcharts, mathematical models, state charts, or combinations of these, to describe the behaviour. Don’t get caught up in the dogma of use cases that says the use case description must be text. For most systems I have found that combinations of methods work best – some transactions are best described using semi-formal text; some by state machines; others by tables. The skill is recognising the type of transactions you are describing and picking the appropriate method.



<<Prev     Home>>

The Baker’s Dozen of Use Cases

February 14th, 2011

Rule 12: Avoid variations on a theme

A common affliction amongst novice use case modellers (particularly those from a development background) is the desire to fettle the use case model – to organise it, revise it, balance it; and generally make it look more like a design model.  Unfortunately, beyond a certain point this effort actually starts to degrade the utility and effectiveness of the model.  More and more effort is put into a model that becomes less and less useful to the customer and the analyst.

This all-too-common situation is known as ‘Analysis Paralysis’.

I always advise, unless you can provide a really compelling reason to do otherwise avoid associations between use cases.  Yes, you might have a less optimal model, but at least your stakeholders will find it easy (or easier) to follow.  This is price you always pay with use case associations: Elegant but complicated to understand, versus sub-optimal but explicit.  In my view explicit always wins; after all, we’re trying to understand the problem, not design a solution.

Case in point:  Use case specialisation.

In UML a use case (and indeed an actor) is a special form of classifier. One of the properties of classifiers is that they can be specialised – that is, a new classifier may be defined that has the properties and behaviours of the parent, but may extend or modify these attributes. The definition of the specialised classifier is that it is also a the type of its parent – that is, all instances of the specialised classifier form a subset of the set of parent classifiers.




Use case and actor specialisation

In use case terms it means we can define actors or use cases that represent specialisations of some base behaviour.  As part of our analysis we may choose to define actors whose goals form a superset of another actor’s. For example, we could define an Administrator actor as a specialisation of a User actor. The Administrator performs all the functions of the User but has additional behaviours (admin tasks)

Actor specialisation is avoidable if you consider actors as roles. A role is just a set of competencies and behaviours that can be adopted by a person (when interacting with the system). So, when I perform everyday tasks I adopt the role of a User actor; when I need to do an administrative task I adopt the role of an Administrator (if I’m able) This model also means I can be an Administrator without being a User – something the specialisation model doesn’t allow.

For use cases the problem becomes more complex. Given any particular use case, what does it mean to specialise it?  A specialised use case is like a base use case, but may have different behaviour. This complication is adding nothing to our comprehension of the system (in fact, possibly the opposite!).  Not to mention the pain you will go through trying to explain all this to your customers!

The Liskow Substitutabiliy Principle (LSP) can help with this situation.  In simple terms the LSP says that a derived class can be substituted for a base class object if, and only if, the derived class has no stronger pre-conditions (demands no more of the client) and has no weaker post-conditions (delivers no less).

For use cases, this means the specialised use case must have the same pre-conditions as the super use case (or possibly weaker).  The specialised use case may override super use case functionality (whatever that actually implies!).  Finally, none of the scenarios in the specialised use case must result in weaker post-conditions than the super use case.

This could be achieved by having a super use case with limited (or no) behaviour, strong pre-conditions and very weak post-conditions.

However, one could reasonably argue this super use case becomes little more than a generic place-holder and doesn’t really add much to our understanding of the system’s (transactional) behaviour.

Use case specialisation can be avoided very simply by forking the use case with an optional flow. For one variation take one path through the use case; for another variation take the other. Unfortunately, this causes the use case to become more complicated; but at the benefit of explicitness.

There are some rare cases where use case specialisation can be more explicit but these are more the exception than the rule.



<<Prev     Next>>

The Baker’s Dozen of Use Cases

November 22nd, 2010

RULE 7: Describe ALL the transactions

A use case, as the name implies, describes the usage of the system from the point of view of some beneficiary (our Actor). It is NOT (as I seem to spend my whole life telling people) is just the system function, organised as some sort of graphical ‘sub-routine’. This means the use case description must include the expected behaviour of the actors as well as the expected behaviour of the system.

This can sometimes appear counter-intuitive to use case newcomers. If the use cases define the functional behaviour of the system, then surely we can’t impose requirements on our users (the actors)?

In fact, this is not the case (and stop calling me Shirley).

The use case describes what we (or, more correctly, our customers) would like to happen when they use the system. It describes the typical interactions between stakeholder and system, such that the stakeholder achieves their goal. If the goal of the use case is beneficial to the stakeholder (see Rule 5) then the stakeholder has compelling reasons to behave as we describe in the use case. In other words, if the stakeholder wants the end result, they should comply with the behaviour described in the use case.

For example, if the system requests some information from the actor it is reasonable to expect them to respond with the information. In effect we are imposing requirements on the stakeholder (“when the system requests information, you shall respond”). Of course, there’s nothing to stop the obtuse user from not responding, walking away, or doing any number of other bizarre and inexplicable things; but these behaviours are a fantastic source of exceptional flows.  This approach moves the use case writer away from describing system functions and instead focuses them on the transactions between the stakeholder and the system.

The use case description defines the system behaviour as a sequence of atomic transactions between the actors and the system. Atomic is used in the sense of indivisible. This means that, in the context of the problem domain the transaction cannot be broken down into smaller transactions. (See also: Rule 9).  There are four basic transactions, and the use case description will be made up of sequences of these transactions:

  1. The actor supplies information to the system. Information could be an event (such as the trigger event) or data; or both.
  2. The system does some work. Remember to describe the results of the work, not how the result is achieved
  3. The system supplies information to the actor. Again, this could be requests for information, output signals, etc.
  4. The actor does some work. As mentioned above this is unenforceable, but reasonable behaviour on the part of the actor.

The fundamental transactions of a use case



Writing style

I suggest writing each transaction in a simple, semi-formal, declarative style. For transactions involving information exchange into or out of the system (that is, ‘Actor supplies information'; ‘The system supplies information to the actor’) I use the following style:

[Source] [Action] [Object] [Target]
For example: “The Navigator supplies the Airfield Altitude to the NAV/WAS system”

Source: The Navigator
Action: Supplies
Object: Airfield Altitude
Target: NAV/WAS System

For descriptions of work being done (either by the system or by the actor) I use the following form:

[Subject] [Action] [Object] [Constraint]

For example: “The ARS rewinds the hose at 5 ft/s +/- 0.5 ft/s”

Subject: The ARS
Action: Rewinds
Object: The Hose
Constraint: 5 ft/s +/-0.5 ft/s

If a transaction contains more than 3 punctuation marks it’s probably too complicated and should be restructured to make its meaning better understood.

Weak phrases
Weak phrases make for comfortable reading of a use case but are apt to cause uncertainty and leave room for multiple interpretations.

Use of phrases such as “adequate” and “as appropriate” indicate that what is required is either defined elsewhere or, worse, that the requirement is open to subjective interpretation. Phrases such as “but not limited to” and “as a minimum” suggest that the requirement hasn’t yet been fully defined.

Typical weak phrases include:

  • As applicable
  • As appropriate
  • But not limited to…
  • Effective
  • Normal
  • Timely
  • Minimize
  • Maximize
  • Rapid
  • User-friendly
  • Easy
  • Sufficient
  • Adequate
  • Quick

The truth is, in general engineers have poor writing skills. By providing a framework for how use cases should be written you are limiting the scope for ambiguity, wooliness and inconsistency.



<<Prev     Next>>

The Baker’s Dozen of Use Cases

October 4th, 2010

RULE 3: Never mix your Actors

The UML definition of an Actor is an external entity that interacts with the system under development. In other words: it’s a stakeholder.

Having analysed all your stakeholders (see Part 3 ) it’s tempting to stick them (no pun intended) as actors on a use case diagram and start defining use cases for each.

Each set of stakeholders (Users, Beneficiaries or Constrainers) has its own set of concerns, language and concepts:

Concerns.
Each stakeholder group has a different set of issues, problems, wants and desires. For example, Users are interested in functionality; Constrainers in compliance.

Concepts.
The way a system is perceived by the stakeholders depends on their viewpoint, their needs, their technical background, etc. Each group’s paradigm – their way of perceiving the system – will be different and involve often subtly different concepts. For example, Users may have no concept of return-on-investment (RoI) for the system; whereas this may be a key concept to a Beneficiary.

Language.
Just as concepts are different; so is the language used to describe them. In many cases, the same word is used in different contexts to mean different things. For example: how many different concepts of ‘power’ can you think of? Mechanical, physical, electrical, political…

It is vital never to mix actors from different stakeholder groups on the same use case diagram. Trying to mix actors leads to ambiguity and confusion; both for the writer and reader! The differences in concept, viewpoint and language will make the use case almost impossible to decipher and understand.

Use a separate use case diagram for each set of stakeholders

By all means draw a separate use case diagram for each set of stakeholders. (Note: non-User stakeholder use case descriptions is beyond the scope of this article)




<<Prev     Next>>

The Baker’s Dozen of Use Cases

September 6th, 2010

RULE 2: Understand your stakeholders

A Stakeholder is a person, or group of people, with a vested interest in your system. Vested means they want something out of it – a return on their investment. That may be money; it may be an easier life.


One of the keys to requirements analysis is understanding your stakeholders – who they are, what they are responsible for, why they want to use your system and how it will benefit them.

It’s important to understand (and difficult for many software engineers to accept!) your stakeholders have responsibilities above and beyond just using your product. In fact, the only reason they are using your product is because it (should!) help them fulfil their larger responsibilities. If your product doesn’t help your stakeholder then why should they use it?


The first step in requirements analysis is to define your stakeholders. That definition must include:

  1. A named individual responsible for the stakeholder group
  2. The stakeholder’s responsibilities. That is, a description of the roles, jobs, and tasks the stakeholders have to perform everyday. If you understand a stakeholder’s problems and needs you can define solutions that help them
  3. Success criteria. That is: what is a good result for this stakeholder? The success criteria are a list of features and qualities that, if implemented, would bring maximum benefit to the stakeholder group.

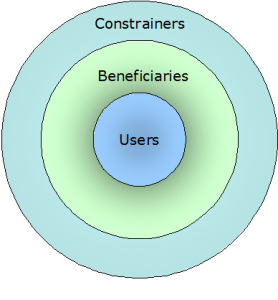

Not all stakeholders are the same. For analysis, I divide stakeholders into three groups using my ‘stakeholder onion’ model:


Users.
Users are the most obvious group of stakeholders. Users directly interact with the system under development (sometimes I call them ‘Direct Interactors’).  A system’s users are concerned with how things work – what buttons to press, what order events happen, etc.  Their focus is therefore primarily functional behaviour and human-centred system qualities-of-service such as usability.

Beneficiaries.
The beneficiaries have some need that the system fulfils (or some pain that needs to be taken away!). The beneficiaries therefore benefit (often financially) by having the system in place. Typically, these stakeholders will be paying for the system. Beneficiaries are less interested in function and more interested in quality-of-service – reliability, maintainability, etc. since if these requirements are not fulfilled it will cost them money!

Constrainers.

The Users and Beneficiaries of a system are concerned with the problem they need to solve.   The Constrainers are focused not on the problem domain but on the solution domain.  The constrainers place negative requirements – or design constraints – on the system.  They place limits on how the system can work, how it will be developed, or what technologies or methodologies may be used. Constrainers come in many forms – Legislation, Standards, The Laws of physics, to name a few.

Most engineers intuitively understand they are, in some way, a stakeholder in the system they are designing, but they often do not know how to express this.  The development team itself is a Constrainer stakeholder, since it places limits on the technologies that can be implemented (lack of skills) or timescales (lack of resource).




Not only do the different stakeholders have different viewpoints, they also have different priorities on your project:

Beneficiaries’ concerns typically (but not always) outweigh user concerns.  For example, in the conflict between usability (a user concern) and low cost (a beneficiary concern) who will win? Remember: He who pays the piper calls the tune…

Constrainers should over-ride beneficiaries. Legal requirements, standards requirements, skills shortages, etc. will always supersede the desires of the other stakeholders.

The core difference between Beneficiaries and Constrainers is that Constrainers CANNOT be influenced – that is, you can negotiate on functional behaviours or qualities of service, but you cannot negotiate away legal requirements or the laws of physics!  A Constrainer either exists, in which case their criteria must be met; or they are not a Constrainer.   The skill, therefore, is to reduce the number of Constrainers on a project to open up as many different design options as possible.




Where does all this fit into Use Case analysis?  The answer is two-fold:

  • Actors on a use case diagram are all stakeholders
  • Stakeholder analysis gives context to the Use Case.

An Actor is an “external entity that interacts with the system under development”.  In the simplest case, that means they’re a User stakeholder.  The Beneficiaries and Constrainers also influence and affect the system behaviour, albeit in a very different way to the Users.

Actors, Stakeholder types and Use Cases is a potential source of problems; and we’ll discuss this in a later article.


The most important reason for performing stakeholder analysis is it gives context to the Use Case model.  The Use Case System Boundary element defines the functional scope of the system – that is, what behaviours the system is required to provide – but it doesn’t give any reasons why the system has to provides those features.   There is nothing on the Use Case diagram that gives any help in validating the Use Case model.   We can add any behaviour we like to the Use Case diagram, provided we can link it to an actor.

By providing a stakeholder analysis we can validate the Use Cases by asking questions such as: Does the Use Case behaviour help the stakeholder (actor) fulfil their responsibilities?  If the behaviour does not help any stakeholder fulfil their responsibilities, should we be implementing it, or have we missed a stakeholder?  Are there other (additional) behaviours the stakeholder may need in order to fulfil their responsibilities?




<<Prev     Next>>

The Baker’s Dozen Of Use Cases

August 18th, 2010

RULE 1: Use Cases Aren’t Silver Bullets

There are a couple of popular misconceptions around use cases:

Misconception 1: The use cases are the requirements of the system

Contrary to what many engineers believe (and many authors have written) the complete set of use cases do NOT constitute its full set of requirements for the system.


A use case model is an analysis tool. They are a mechanism for organising the functional behaviour of the system and reflecting it back to the stakeholders. This is sometimes referred to as ‘Problem Reframing’. By re-framing the requirements to are aiming to achieve three things:

  • Demonstrate you have understood the problem, as the customer perceives it.
  • Capture information exchange and sequencing requirements.
  • Identify any missing behaviours

In order to achieve this effectively you need to generalise and abstract the customer requirements into something more manageable. Thus the use cases ‘reflect’ the system requirements without actually being the system requirements.

In embedded systems design the functional behaviour is but a small part of the requirements of the system. System developers must comply with a vast number of other requirements, including performance, reliability, security, environmental, useability, etc. Many of these are system qualities – that is, they apply to the system as a whole, not just the software. Use Cases are simply not an effective tool for capturing this information, despite attempts by several authors to incorporate them.


Misconception 2: You must always build a use case model

Engineering problems can be classified into four basic categories:

Data-oriented
In a data-oriented problem it is the information, and its relationship to other information, that is important.

Modal
Modal problems are characterised by having separate, distinct behaviours at different times. Trigger events from the environment will cause the system to change its behaviour.

Transactional
Transactional problems tend to be event-driven: A behaviour is (externally) invoked, which either produces a result or a change in the environment.

Flow-of-materials
Problems tend to be control-oriented: data/materiel moves from ‘sources’ to ‘sinks’. Algorithms and rules control how the information is moved and transformed.

While it’s perfectly correct to say that almost all systems have all these elements to some extent, in most cases one of the categories tends to dominate the requirements of the system.


Use cases are most effective when used to describe Transactional problems. Using Use Case analysis on other types of system often yields less-useful information about the system. In some cases Use Cases actually obfuscate the problem by attempting to re-frame one type of problem into a Transactional problem. For example, attempting to describe a flow-of-materials problem with use cases tends to yield trivial Use Cases and obscures the fundamental nature of the problem by trying to re-frame ‘flows’ as descrete ‘events’.


Use cases are a very powerful analysis tool – when used in the right way and under the right circumstances. But they aren’t a silver bullet. Use cases don’t solve every requirements analysis problem and they don’t necessarily suit every type of problem.

In order to use Use Cases effectively you must understand what type of problem you are trying to solve and whether use cases are the right tool for the job.




<<Prev     Next>>
