For many years embedded development was dominated by complex integrated development environments (IDEs) that hide away all the nasty, messy details of a typical embedded software project.
Recently, with the rapidly accelerating adoption of agile techniques in embedded systems, there has been a move away from integrated development environments towards smaller, simpler, individual tools. Tools like CMake, Rake and SCons are used to manage build configurations. Container facilities like Docker provide lightweight environments for build and test. And developers are free to use their code editor of choice (and let’s face it: the “best editor” is as close to a developer’s heart as the “one-true-brace-style”)
And on. And on.
As the title suggests in this article we’re going at how to integrate the Sublime Text editor with the SCons build tool, to make developing a little more elegant and seamless.
Contents
Sublime Text
We like Sublime Text at Feabhas. It’s easy to use, easy to configure and contains some very useful features for developing C/C++ code.
Sublime Text is cross-platform, and can be downloaded from here [www.sublimetext.com]
In this short article we’ll look at some basic Sublime Text configuration for incorporating builds (compilation) into the editor.
Before we start
In this example we’ve got an already-building C++ project using SCons (our software construction tool of choice at the moment). The contents of this project are unimportant, but for reference it looks like this:
. ├── Debug ├── SConscript ├── SConstruct └── src ├── Event.cpp ├── Event.h ├── EventList.cpp ├── EventList.h ├── Filter.cpp ├── Filter.h ├── Pipe.cpp ├── Pipe.h ├── Pipeline.cpp ├── Pipeline.h ├── Buffer.h └── main.cpp
I can launch Sublime Text as an editor, then drag my project root folder onto the tool, which makes all files in the project visible.

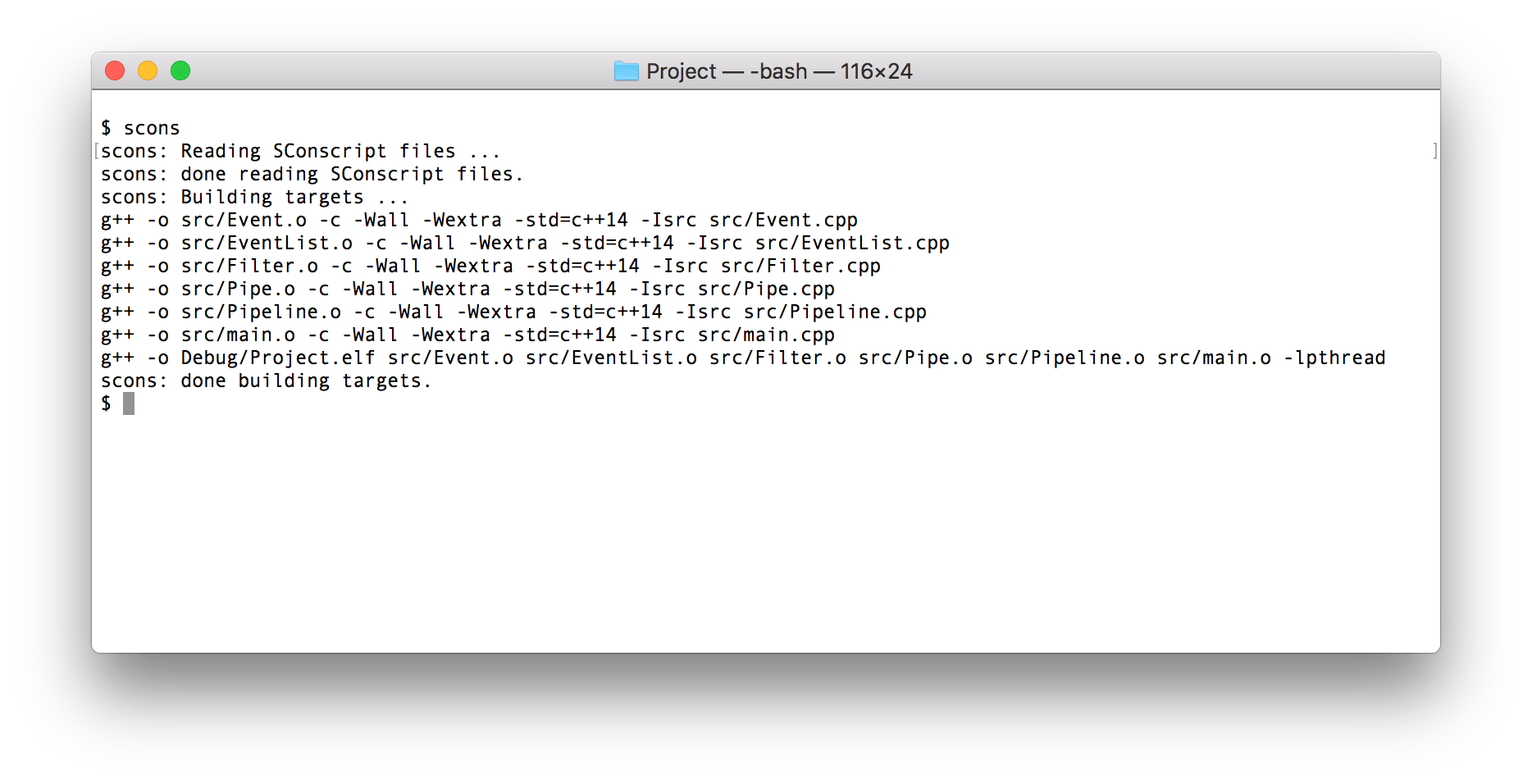

At the moment, though, I have to revert to the command line to build the project (remembering to save everything before doing so).
It would be more convenient if I could build from directly within Sublime Text. Luckily, Sublime Text has a feature just for this purpose.
Using Sublime Text’s Build facility
On the Sublime Text Tools menu, select Build System.
You’ll notice there are a few already built in; but not one for SCons.
Let’s add it.
Select the New Build System option
Sublime Text will create a new file called untitled.sublime-build. The contents of this file are
{
"shell_cmd": "make"
}
The default, then, is to invoke make on your project. We update this file to invoke SCons instead.
{
"shell_cmd": "scons"
}
Save the file as something meaningful like scons.sublime-build. (Note, you must retain the .sublime-build extension)
This file should be saved in the Sublime Text ‘User Packages’ folder (the default location).
For Sublime Text3, the locations are the following:
- Windows: %APPDATA%\Sublime Text 3/User
- OS X: ~/Library/Application Support/Sublime Text 3/User
- Linux: ~/.config/sublime-text-3/User
(See here for more details)
Trying our build
First, we have to make our new build script the default build. From the Tools menu, select Build System, then select your newly-created scons build. For convenience, it’s also a good idea to select the Save All on Build option.
Selecting the SConstruct file of our project and selecting Build results in our project building as we expect. Success!
However, if we select a source file the build script fails, not able to find the SConstruct file.
The problem here is Sublime Text is looking for the SConstruct file in whatever the current folder is.
We can resolve this by adding the path the SConstruct file in the bulid command file.
{
"working_dir": "/Users/glennan/workspace/Project/",
"shell_cmd": "scons"
}
(Obviously, your path will be different)
The project will now build no matter which file is currently in focus.
Adding flexibility with Sublime Text projects
The above works fine, but we’ve hard-coded a build path into Sublime Text for one particular project. This is clearly inflexible if we have multiple code projects to maintain.
A Sublime Text project contains editor configuration for your code. It consists of two files: A .sublime-project file, which contains project-specific definitions; and a .sublime-workspace file, which contains user specific data, such as the open files and the modifications to each. For this article we’re only going to look at the .sublime-project file.
We can add a new project to our existing code structure by simply selecting Project -> Save Project As…
Select the root of your code structure (the same level as the SConstruct file, to make life easier)
. ├── Debug ├── Project.sublime-project ├── Project.sublime-workspace ├── SConscript ├── SConstruct └── src
(Note: The .sublime-workspace file won’t be visible in the project folder structure within Sublime Text; but’s it’s there)
Now we have a Sublime Text project we can make use of some build system variables. We can edit our build script as follows
{
"working_dir": "${project_path:${folder}}",
"shell_cmd": "scons"
}
This says: set the working directory (for build) to the folder containing the .sublime-project file; or else the first folder opened in the current project.
Provided you have a .sublime-project file at the same level as your SConstruct file this command will invoke SCons with the local SConstruct file. We can now have a single build tool that can build multiple projects.
Utilising the Sublime Text project file
At the moment we have added a global SCons build tool that can build any Sublime Text project with its SConstruct file in the code-project root directory. We can make this more flexible by adding building information into the Sublime Text project file.
Sublime Text project files are JSON, and support three top level sections:
- folders, for the included folders,
- settings, for file-setting overrides, and
- build_systems, for project specific build systems.
(We’re only interested in the build systems settings in this article. Have a look here for more details of project configuration options)
Here’s our default project file:
{
"folders":
[
{
"path": "."
}
]
}
Let’s add in build configurations for this particular project. The project file is edited as follows
{
"folders":
[
{
"path": "."
}
],
"build_systems":
[
{
"name": "Local",
"working_dir": "${project_path:${folder}}",
"shell_cmd": "scons"
},
{
"name": "Docker",
"shell_cmd": "docker run --rm -v ${project_path}:/usr/project feabhas/gcc7-scons:1.0"
}
]
}
IMPORTANT :
Don’t forget the comma between the “folders” section and the “build_systems” section, otherwise you’ll get an unhelpful error (or nothing!)
In this example I’ve added two build configurations: “Local” uses the compiler toolchain specified in the local SConstruct file (as previously). The second configuration, “Docker” compiles the project code in a Docker container (for more information on Docker containers have a look at our article here)
The new build configurations are now added to the Tools menu:
Congratulations! You can now build your project (from its SConstruct file) directly from Sublime Text.
Happy building!
